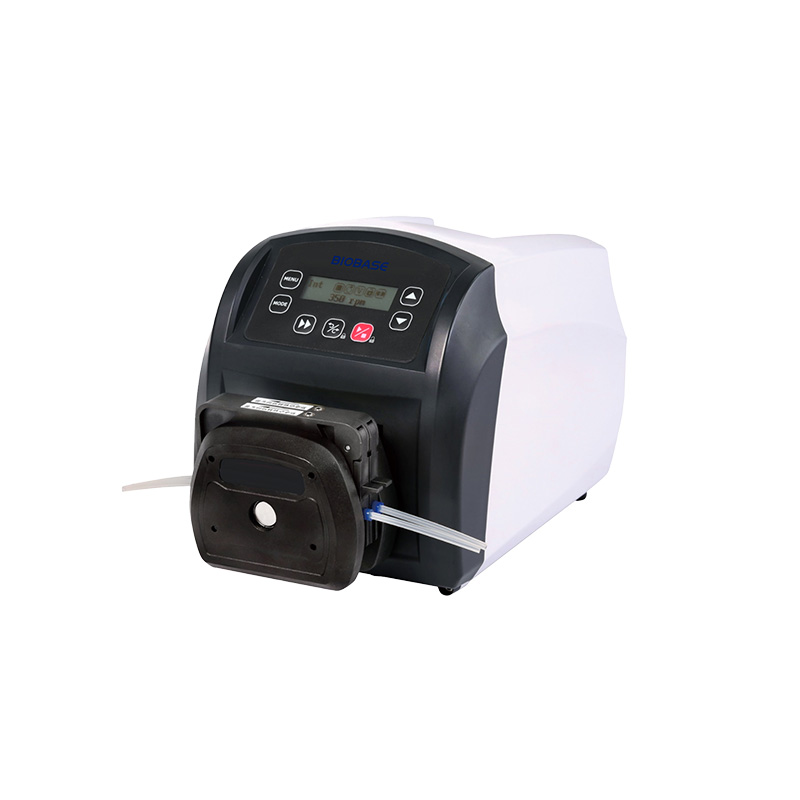

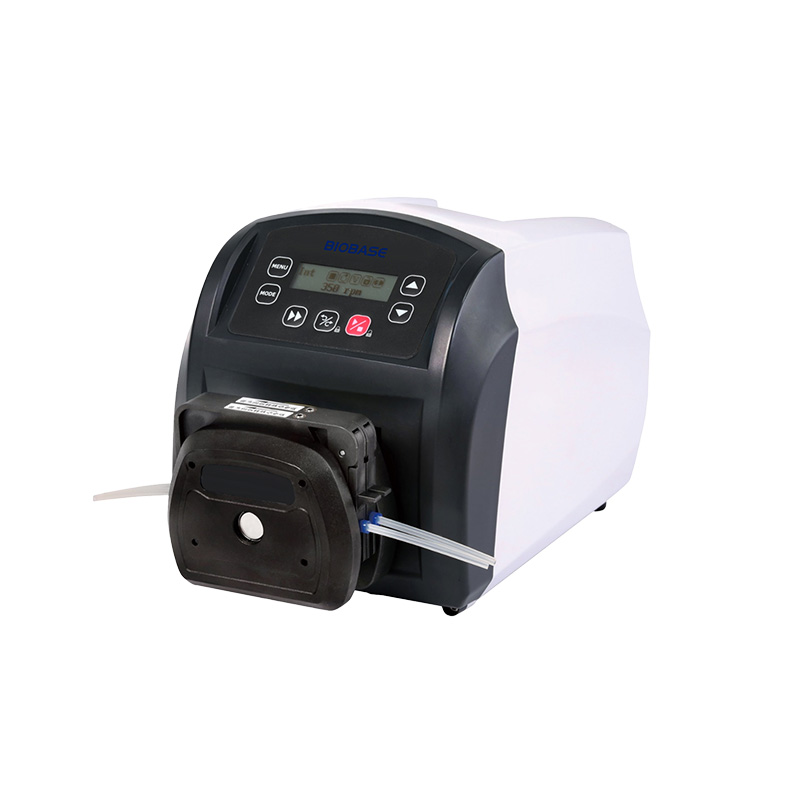

Standard Peristaltic Pump BT-S Series
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BT101S BT301S BT601S
Introduction:
The Standard Peristaltic Pump is a reliable and efficient fluid transfer device designed for applications that require gentle, contamination-free pumping.
Download
Features：
1. 4-digit LED digital tube displays the speed and working mode.
2. LF-LED-OS software system.
3. LED indicator shows the working status of positive and negative, internal control, external control, foot switch, etc..
4. Toggle switch and knob are combined for operation.
5. It has basic functions such as start and stop, forward and reverse,full speed, speed regulation, state memory, etc.
6. Simple dispensing control, realizing the function of repeatedly transferring quantitative liquids.
7. Streamlined plastic shell design, simple and stylish.
8. Large torque output, different pump heads can be installed to realize multi-channel and driver combination.
9. The internal structure adopts a double-layer isolation design, and the circuit board is sprayed with three anti-paint technology to achieve the effect of dust and moisture.
10. Super anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
11. External control high and low-level control start and stop, positive and negative, simple subassembly, optocoupler isolation; external control analog quantity adjusts the speed.
12. RS485 communication, support Modbus protocol, convenient to connect with various control equipment.
13. It can be equipped with foot switch, pulse dampener, leak detector and other optional accessories.
Technical Parameters：
Model | BT101S | BT301S | BT601S |
FIow Range | 0.0001~720ml/min | 0.006~1690ml/min | 0.006~2900ml/min |
Rotation Range | 0.1~150rpm | 0.1~350rpm | 0.1~600rpm |
Speed Resolution | 0.1~100rpm: 0.1 rpm; 100~600rpm: 1rpm | ||
Speed Accuracy | <±0.5% | ||
Power Supply | AC100~240V, 50Hz/60Hz | ||
Power | <30W | <40W | <50W |
External Control Interface | External control input level 5V, 12V(standard), 24V(optional); External control analog 0~5V(standard), 0~10V, 4~20mA(optional) | ||
Communication Interface | RS485 communication, compatible with Modbus protocol | ||
Working Environment | Ambient temperature 0~40°C, relative humidity <80% | ||
Protection Level | IP31 | ||
Overall Dimensions(L*W*H) | 261*180*197mm | ||
Drive Weight | 4.5kg | 4.7kg | 4.9kg |
Packing Size | 430*290*320mm | ||
Gross Weight | 8kg | ||

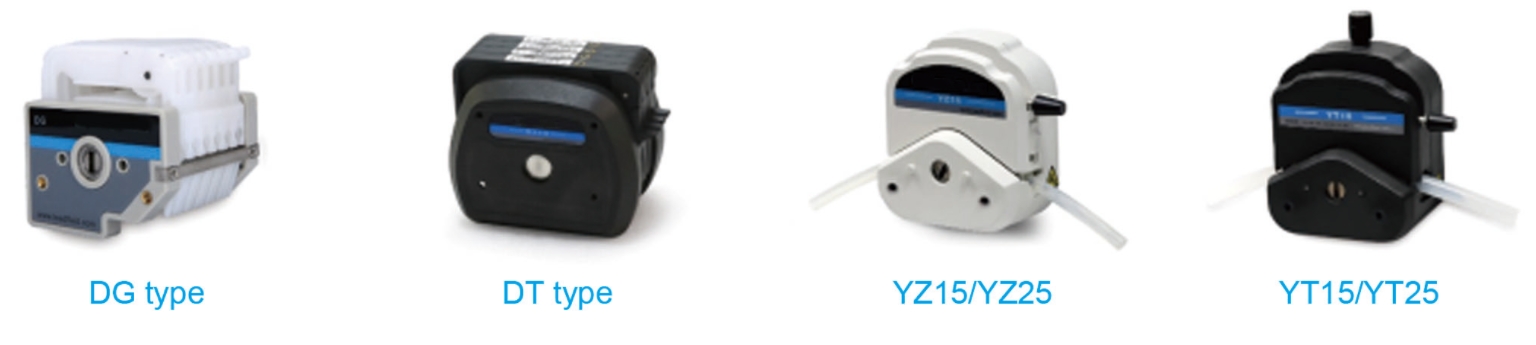

Pump Head:
Applicable Pump Head, Hose& Flow Parameters:
Driver Model | Applicable | Number | Applicable Hose | Single Channel |
BT101S | DG(6 Scroll wheel) | 1, 2, 4 | Wall thickness 0.8~1mm, | 0.0002~49 |
DG(10 Scroll wheel) | 1, 2, 4 | Wall thickness 0.8~1mm, | 0.0001~41 | |
DT10-18 | 1 | 13#, 14#, Wall thickness 0.8~1mm, Inner diameter ≤3.17mm | 0.0002~82 | |
DT10-28 | 2 | 13#, 14#, Wall thickness 0.8~1mm, Inner diameter ≤3.17mm | 0.0002~82 | |
YZ15 | 1 | 13#, 14#, 19#, 16#, 25#, 17# | 0.006~420 | |
YZ25 | 1 | 15#, 24# | 0.16~420 | |
YT15 | 1 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.006~570 | |
YT25 | 1 | 15#, 24#, 35#, 36# | 0.17~720 | |
BT301S | YZ15 | 1 | 13#, 14#, 19#, 16#, 25#, 17# | 0.006~990 |
YZ25 | 1 | 15#, 24# | 0.16~990 | |
YT15 | 1 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.006~1300 | |
YT25 | 1 | 15#, 24#, 35#, 36# | 0.16~1690 | |
BT601S | YZ15 | 1 | 13#, 14#, 19#, 16#, 25#, 17# | 0.006~1700 |
YZ25 | 1 | 15#, 24# | 0.16~1700 | |
YT15 | 1 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.006~2300 | |
YT25 | 1 | 15#, 24#, 35#, 36# | 0.16~2900 |
Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
