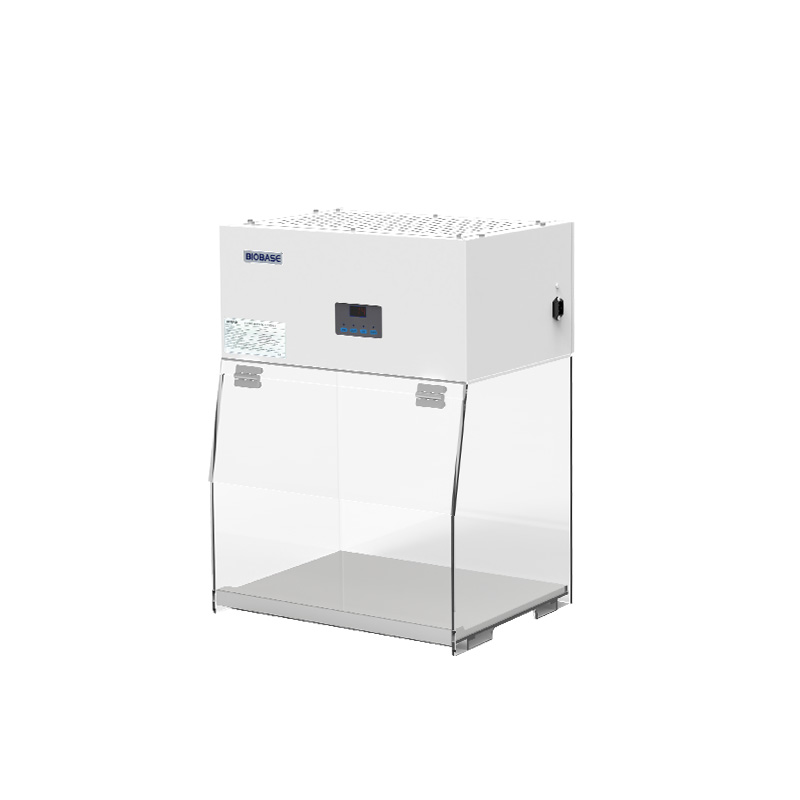

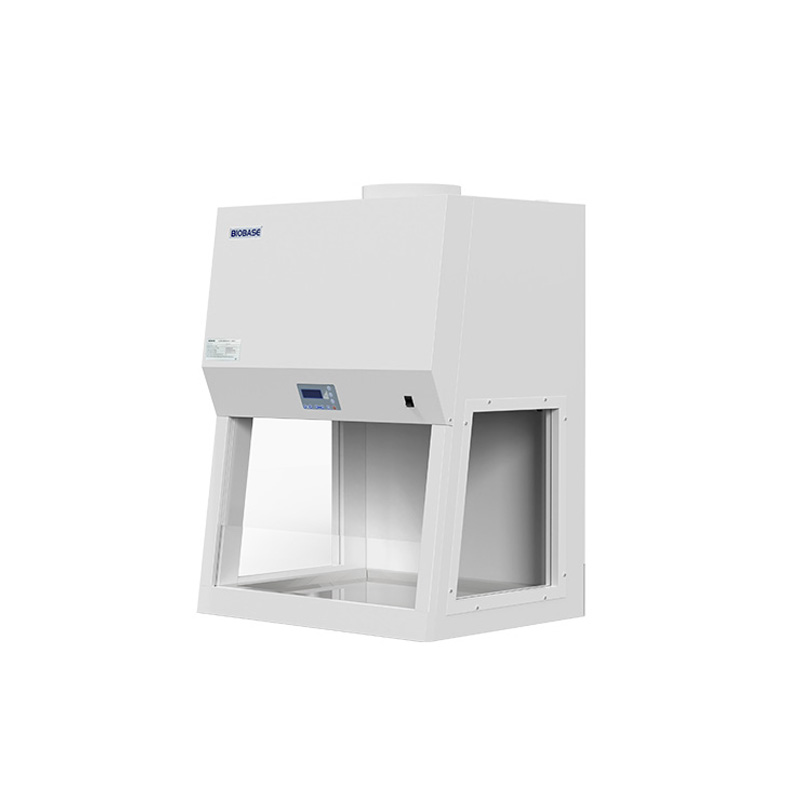

BIOBASE Class I Biological Safety Cabinet
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BYKG-I BYKG-II BYKG-III BYKG-V
Introduction:
The Class I biological safety cabinet can adequately protect the harm caused by aerosol pollution, and effectively protect the personnel and environment. It is negative pressure air inlet in front window of Class I biological safety cabinet which can protect the operators and the exhaust air goes through HEPA filter which can protect the environment. The Class I Biological safety cabinet can be placed on anywhere with it’s simple and portable structure.
Download
Features:
1. UV lamp for sterilization.
2. Soft touch control panel, LCD display(Only BYKG-III).
3. Energy-saving, high efficiency, low noise.
4. With memory function in case of power-failure.
5. One piece 304 stainless steel work stable, easy for cleaning.
6. Stable air flow system; provide firm protection to people and environment.
Air Pattern of Class I Biosafety Cabinet:
Technical Parameters:
Model | BYKG-I | BYKG-II | BYKG-III | BYKG-V |
External Size(W*D*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*697*1900mm |
Internal Size(W*D*H) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*625*630mm |
HEPA Filter | 99.9995% efficiency at 0.3μm | |||
Airflow Velocity | >0.3m/s | 0.75~1.0m/s | >0.3m/s | 0.75~1.0m/s |
Noise | ≤60dB | ≤55dB | ≤60dB | ≤67dB |
Illuminating Lamp | 4W*1 LED lamp | 8W*1 LED lamp | 8W*1 LED lamp | 12W*2 Fluorescent lamp |
UV Lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 |
Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. | ||||
Power Consumption | 150W | 160W | 400W | 350W |
Work Surface Height | / | / | / | 750mm |
Caster | / | / | / | Universal caster |
Main Body Construction | PMMA | Cold-rolled steel with anti-bacteria powder coating | ||
Work Table | 304 stainless steel | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Standard Accessory | LED lamp, UV lamp*2 | Fluorescent lamp, UV lamp*2, Base stand | ||
Optional Accessory | Electric height adjustable base stand | |||
Gross Weight | 38kg | 68kg | 147kg | 185kg |
Package Size(W*D*H) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1260*860*2080mm |
