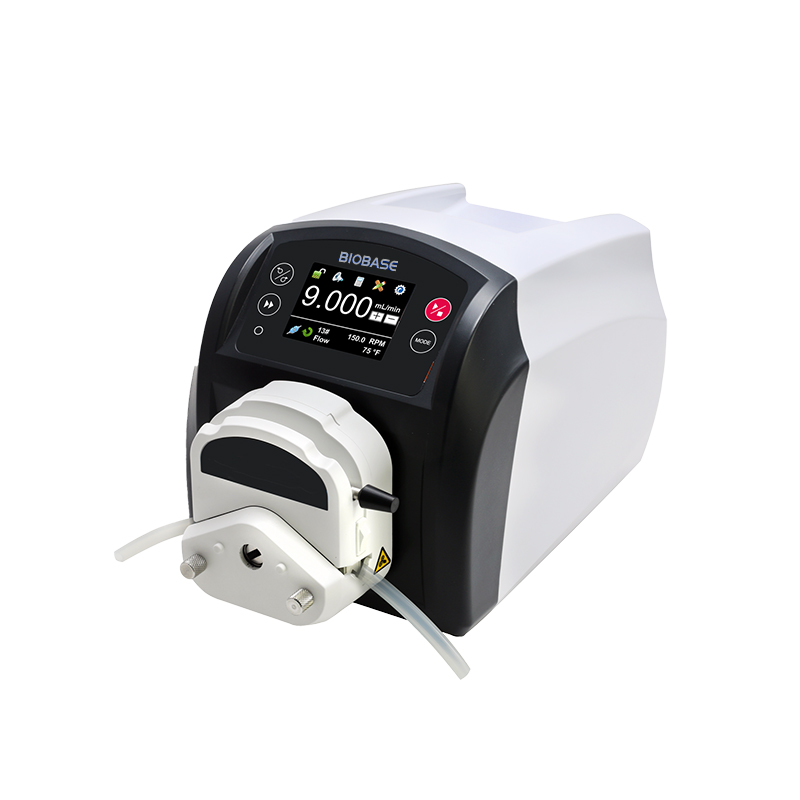

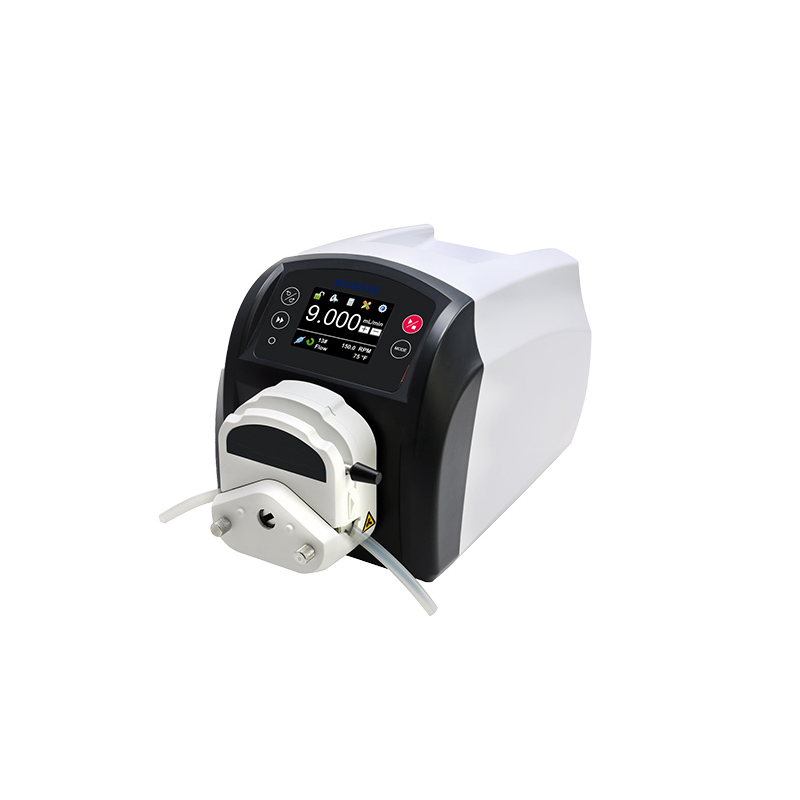

Dispensing Peristaltic Pump BT-F Series

Brand BIOBASE

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Dispensing Peristaltic Pump

Download

Dispensing Peristaltic Pump BT-F Series

Features:

True color LCD display, touch screen and button operation;

LF-touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade;

With liquid allocation, time allocation, copy allocation of three working modes;

Pre-store five groups of assignment parameters for various working modes;

Motor precise rotation Angle control technology reduces the traditional time control distribution mode due to motor slow start and other factors

The distribution error caused by;

With start-stop, positive and negative rotation, full speed, speed regulation, state memory and other basic functions;

Speed resolution of O.lrpm;

Flow display, flow control, fluid accumulation;

With flow correction function;

Peristaltic pump expert system for maximum user convenience;

Intelligent temperature control function to minimize the noise of peristaltic pump;

External high& low-level control start and stop, positive and negative, simple packing, optical coupling isolation; External control analog quantity to adjust the speed;

RS485 communication, compatible with Modbus protocol, convenient to connect with various control devices;

The internal structure adopts double-layer isolation design, and the circuit board is sprayed with three-proof paint process to achieve dustproof and moisture-proof effect;

Strong anti-interference characteristics, wide voltage design, suitable for complex power supply environment;

The driver shell is made of ABS engineering plastic, streamline design, beautiful and practical;

Multiple pump heads can be installed for different combination of pump heads and drivers;

The function of distributing filling can be realized through the external pedal switch to control the start and stop


Technical Parameters:

Model

BT101F

BT301F

BT601F

Flow Range

0.0001 〜720ml/min

0.006〜1690ml/min

0.006~2900ml/min

Rotation Range

0.1 〜150rpm

0.1~350rpm

0.1~600rpm

Speed Resolution

0.1 rpm

Dispensed Liquid Volume Range

0.05ml 〜9999I

Dispensed Frequency Range

1 to 999 times, "0" means infinite loop

Dispensed Interval Time

0.1~999.9 seconds/minute/hour, time unit is adjustable

Speed Accuracy

<±0.2%

Power Supply

AC100~240V, 50Hz/60Hz

Power

<30W

<40W

<50W

External Control Interface

External control input level 5V, 12V (standard), 24V (optional);

Communication Interface

external control analog 0-5V (standard), 0-10V, 4-20mA (optional)

RS485 communication, compatible with Modbus protocol

Working Environment

Ambient temperature 0~40°C, relative humidity <80%

Protection Level

IP31

Overall Dimensions (L*W*H)

261*180*197mm

Drive Weight

4.5kg

4.7kg

4.9kg

Packing Size

430*290*320mm

Gross Weight

8kg







Pump Head:

Dispensing Peristaltic Pump BT-F Series

Applicable Pump Head, Hose& Flow Parameters

Driver Model

Applicable pump head

Number of channels

Applicable hose

Single channel flow rate (ml/min)

BT101F

DG (6 Scroll wheel)

124

Wall thickness 0.8~1mm,

Inner diameter^. 17mm

0.0002~49

DG (10 Scroll wheel)

124

Wall thickness 0.81mm,

Inner diameter^. 17mm

0.0001 ~41

DT10-18

1

13#14#, Wall thickness 0.8~1 mm.

Inner diameter<3.17mm

0.000282

DT10-28

2

13#14#, Wall thickness 0.8~1mm,

Inner diameter<3.17mm

0.000282

YZ15

1

13#14#19#16#25#17#

0.006420

YZ25

1

15#24#

0.16420

YT15

1

13#14#19#16#25#17#18#

0.006570

YT25

1

15#24#35#36#

0.17 〜720

BT301F

YZ15

1

13#14#19#16#25#17#

0.006990

YZ25

1

15#24#

0.16〜990

YT15

1

13#14#19#16#25#17#18#

0.0061300

YT25

1

15#24#35#36#

0.16〜1690

BT601F

YZ15

1

13#14#19#16#25#17#

0.0061700

YZ25

1

15#24#

0.16〜1700

YT15

1

13#14#19#16#25#17#18#

0.0062300

YT25

1

15#24#35#36#

0.16〜2900
