Gene Electroporator
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-GE2CS
Introduction:

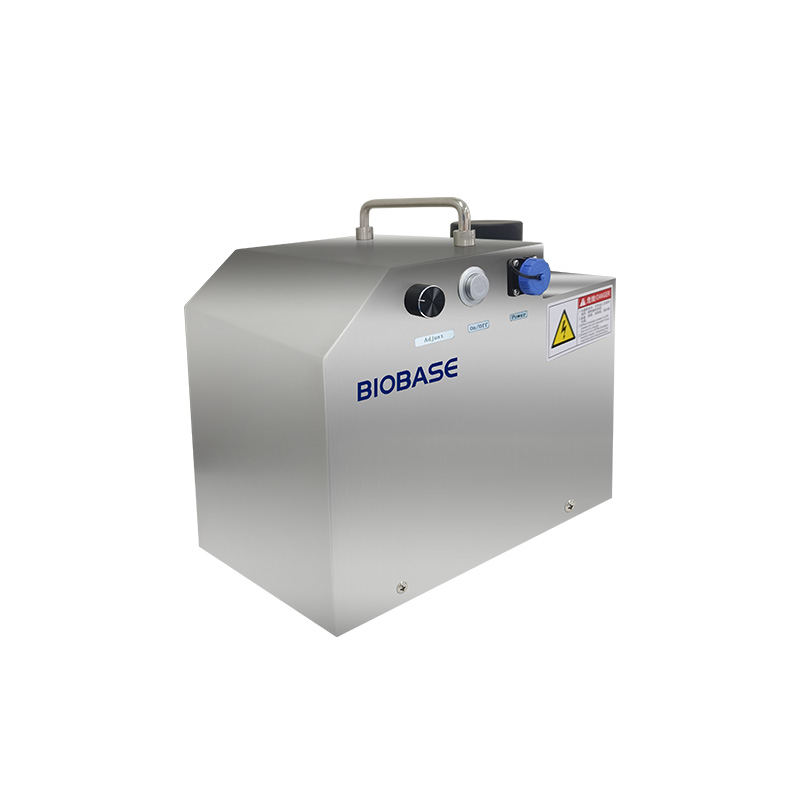

BK-GE2CS Gene Electroporator consists of the main unit, gene electroporation cup, and dedicated connecting cables. It primarily uses electroporation to introduce DNA into competent cells, plant and animal cells, and yeast cells. Compared to other methods, the gene electroporator offers high repeatability, high efficiency, ease of operation, and precise control. Additionally, electroporation has no genotoxicity, making it an essential technique in molecular biology.
Download
Application:
1. Electroporation of bacteria, yeast, and other microorganisms.
2. Transfection of mammalian cells, plant tissues, and protoplasts.
3. Cell hybridization and gene fusion.
4. Introduction of marker genes for labeling and indicating purposes.
5. Introduction of drugs, proteins, antibodies, and other molecules for studying cellular structure and function.
Features:
1. High Efficiency. Short transformation time, high conversion rate, small tolerance.
2. Intelligent Storage. Experimental parameters can be stored for user convenience.
3. Precise Control. Microprocessor-controlled pulse discharge.
4. Aesthetic Design. Integrated design, intuitive display, simple operation.
Technical Parameters:
| Model | BK-GE2CS |
Pulse Type | Exponential decay |
High Voltage Output | 401~3000V |
Low Voltage Output | 50~400V |
High Voltage Capacitance | 10μF, 25μF, 35μF, 50μF, 60μF |
Low Voltage Capacitance | 50μF, 100μF, 125μF, 150μF to 1560μF in 25μF steps |
Parallel Resistance | 50Ω, 100Ω, 150Ω up to 1650Ω in 50Ω steps |
Operating System | Microcomputer control |
Time Constant | With adjustable RC time constant |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
Standard Accessory | Gene seat*1, cuvette*2, fuse*2 |
External Size(W*D*H) | 400*300*200mm |
Package Size(W*D*H) | 580*360*250mm |
Net Weight | 5.5kg |
Gross Weight | 7kg |
Conversion Rates for Different Strains:
| Type | Pulse Voltage(V) | Resistance(Ω) | Capacitance(μF) | Electroporation Cup(mm) |
E.Coli | 1800 | 200 | 25 | 1 |
E.Coli | 2500 | 200 | 25 | 2 |
E.Coli | 3000 | 200 | 25 | 2 |
A.Tumefaciens | 2400 | 200 | 25 | 1 |
P.Asruginosa | 2500 | 200 | 25 | 2 |
S.Aureus | 2900 | 100 | 25 | 2 |
B.Cereus | 1000 | 200 | 25 | 2 |
S.pyogenes | 2100 | 200 | 50 | 2 |
L.Plantarum | 2000 | 400 | 25 | 2 |
S.Cerevisiae | 1500 | 200 | 25 | 2 |
S.Pombe | 2300 | 200 | 25 | 2 |
C.Albicans | 1500 | 200 | 25 | 2 |
P.Pastoris | 2000 | 200 | 25 | 2 |
Note: Due to variations in experimental conditions across different labs, the above parameters are for reference only.
