Jaundice Meter
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply

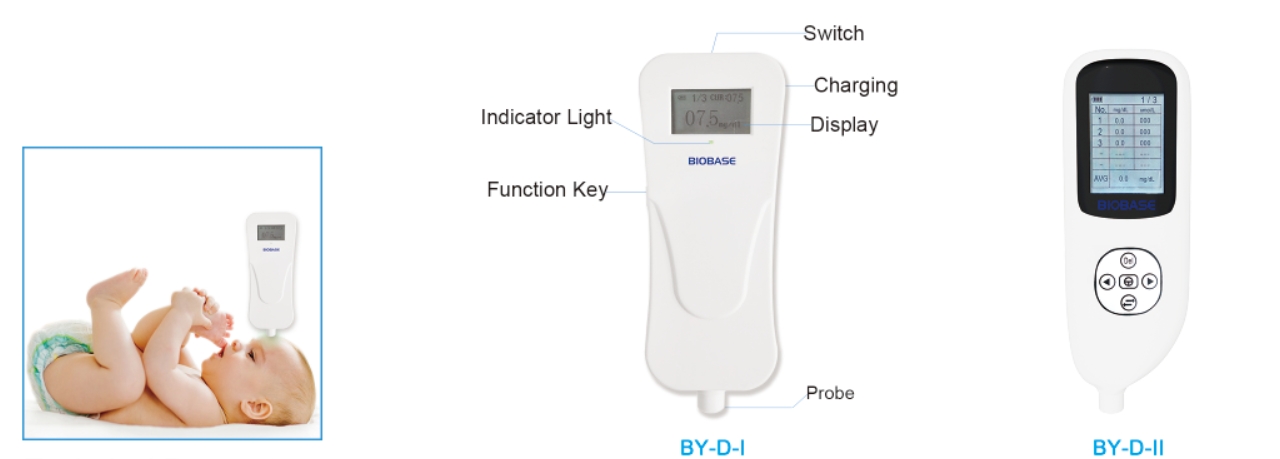

Model BY-D-І BY-D-II
Introduction:
BY-D-І Jaundice Meter adopts advanced fiber technology, optical technology, electronics and information processing technology, the light and electricity organically combined for dynamically monitoring neonatal serum bilirubin percutaneous value. The device can measure percutaneous bilirubin value related to serum bilirubin concentration through neonatal skin by rapid noninvasive determination, eliminating the pain caused by repeated blood samples to neonates, but also reducing difficulties of medical staff to collect blood samples.
Download
Product Configuration:
Jaundice meter, calibration plate and charger.
Technical Parameters:
Model | BY-D-І | BY-D-II |
Measuring Method | Light reflection | |
Light Source | Xenon flash | |
Display | 1.6-inch LCD display | 2.2-inch LCD display |
Measuring Range | 0.0~29.9mg/dL(0.0~425μmol/L) | |
Indication Error | 00~15±1(mg/dL) 16~25±1.5(mg/dL) | |
Measuring Accuracy | RSD＜2% | |
Battery | 4 Triple A rechargeable nickel-metal hydride batteries | Built-in lithium battery |
Measuring Times | 800 times after each full charge | |
Measuring Units | mg/dL; μmol/L | mg/dL; μmol/L(Simultaneous display) |
Measuring Averages | 2～5 sets | 1～5 sets(Display both test values and averages) |
Calibration Plate | White screen 00.0 or 00.1mg/dL Yellow screen 20.0±1mg/dL | |
Working Temp | 10～30℃ | |
Working Relative Humidity | ≤80% | |
Working Atmospheric Pressure | 75~106Kpa | |
Storage Function | / | Stores up to 100 records |
Power Supply | Input: AC100~240V, 50/60Hz Output: DC6.0V | Input: AC100~240V, 50/60Hz Output: DC5.0V |
External Size(W*D*H) | 175*68*26mm | 168*62*26mm |
Package Size(W*D*H) | 275*135*235mm(carton box) | |
Net Weight(kg) | 0.157(including batteries) 0.11(without battery) | 0.155 |
Gross Weight(kg) | 1.33 | |
