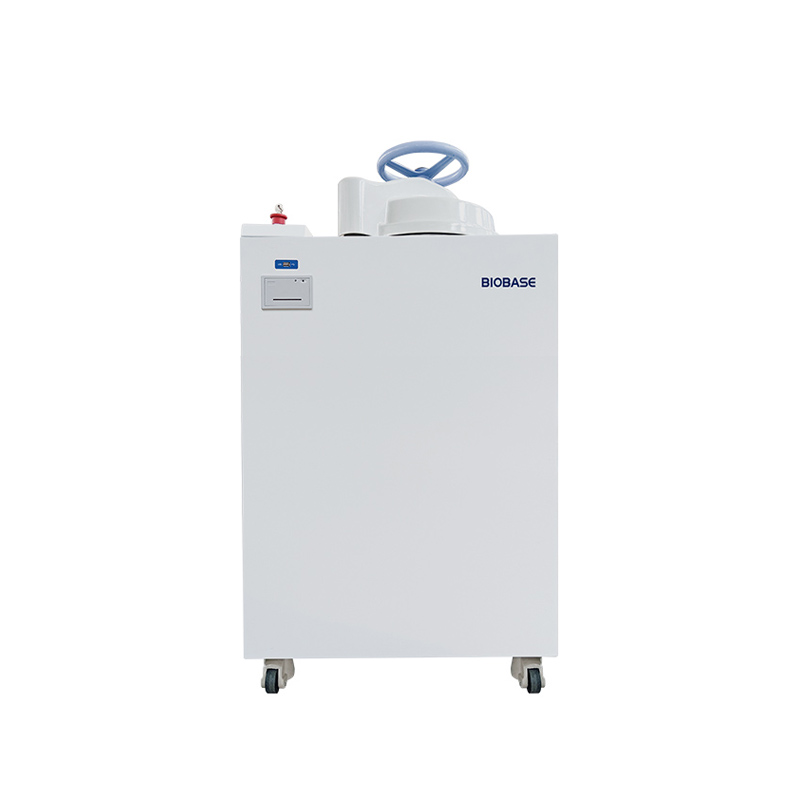

Vertical Autoclave BKQ-B50I BKQ-B75I BKQ-B100I BKQ-B120I
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKQ-B50I, BKQ-B75I, BKQ-B100I, BKQ-B120I
Application Range:
It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.
Download
Features:
1. The hand wheel slides to open the door, which is fast and labor-saving.
2. Casters facilitate the movement of the equipment.
3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.
4. Steam generation method: heating inside the main body, no external steam source is required.
5. Self-expanding silicone sealing ring has good sealing effect and long service life. It is molded with transparent medical silicone.
6. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.
7. The LED digital tube displays temperature, time, alarm code and the indicator light shows the current operating status.
8. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.
9. Optional printer to record the temperature during sterilization.
Technical Parameters:
Model | BKQ-B50I | BKQ-B75I | BKQ-B100I | BKQ-B120I |
Capacity | 50L | 75L | 100L | 120L |
Designed Pressure | 0.28Mpa | |||
Working Pressure | 0.23MPa | |||
Designed Temp. | 150℃ | |||
Working Temp. | 105~136℃ | |||
Temp. Display Accuracy | 0.1℃ | |||
Chamber Material | S30408 | |||
Chamber Size(mm) | φ386*515 | φ386*695 | φ386*875 | φ386*1055 |
Basket(mm) | φ365*360, 1pc | φ365*265, 2pcs | φ365*360, 2pcs | φ365*360, 1pc φ365*265, 2pcs |
Consumption | 4.4KW | 4.4KW | 5.2KW | 5.2KW |
Altitude | ≤3000m | |||
Power Supply | Standard: 220V, 50Hz or 220V, 60Hz Optional: 110V, 50Hz or 110V, 60Hz | |||
Standard Accessories | Basket | |||
Optional Accessories | Printer, mesh bottom basket, tray, bucket | |||
External Size(W*D*H)mm | 640*550*980 | 640*550*1080 | 640*550*1280 | 640*550*1380 |
Packing Size(W*D*H)mm | 750*745*1100 | 750*745*1240 | 750*745*1450 | 750*745*1540 |
Net Weight(kg) | 87 | 93 | 103 | 120 |
Gross Weight(kg) | 102 | 115 | 123 | 135 |
