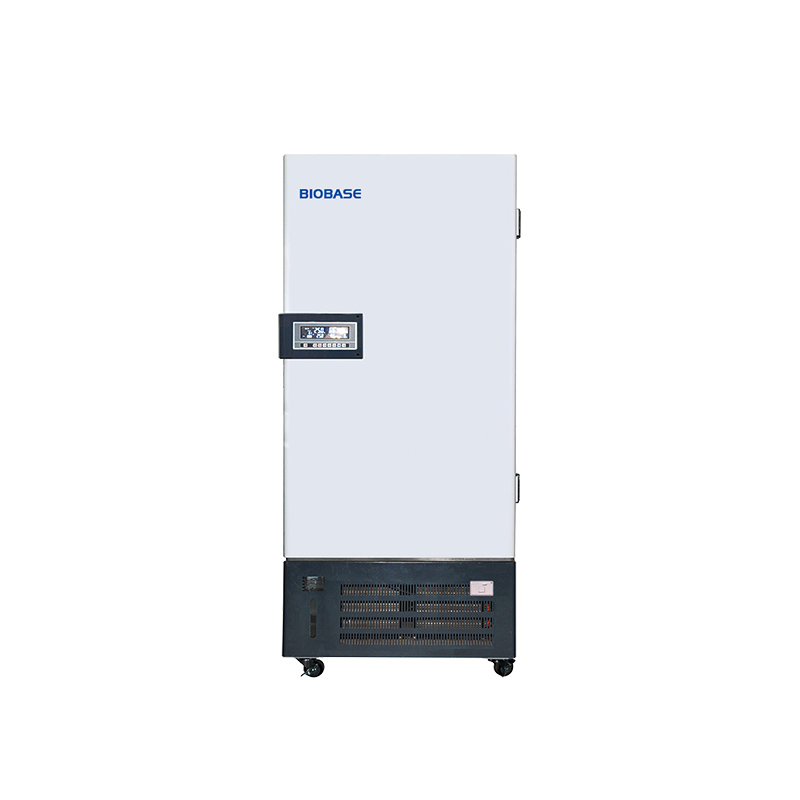

Medicine Stability Test Chamber(BJPX-MS)
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BJPX-MS250, BJPX-MS300, BJPX-MS400
Introduction:
This equipment provide a long-time stable environment of temperature, humidity and illumination for the medicine invalidation evaluation. It's applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.
Download
Features:
1. P.I.D accurate and reliable temperature and humidity control.
2. Built-in fan to form air circulation and improve temperature uniformity inside the cabinet.
3. Built-in water tank and automatic water replenishment interface, when there is no humidification water, automatically disconnect the heater power.
4. Standard Accessory include: Micro thermal printer.
5. Optional: Micro-needle printer, External temperature protection device.
Technical Parameters:
Model | BJPX-MS250 | BJPX-MS300 | BJPX-MS400 |
Display | 5.7 inches LCD display | ||
Capacity | 248L | 290L | 402L |
Temp. Range | 0~65℃ | ||
Temp. Fluctuation | ±0.5℃ | ||
Temp. Uniformity | ±2℃ | ||
Humidity Control Range | 40~95%RH(Depends on temperature, beyond 10℃) | ||
Humidity Fluctuation | ±3%RH | ||
Illuminance | 6000lux, 5 level adjustable, 1-side illumination | ||
Shelves | 2pcs adjustable | ||
Timing Range | 1~99min | ||
Refrigeration System | R134a refrigerant, refrigerant, CFC-free | ||
Alarm | High or low temperature alarm, temperature and humidity probe damage alarm | ||
Consumption | 2400W | 2900W | 3400W |
Power Supply | Standard: 220V±10%, 50Hz Optional: 110V±10%, 60Hz | ||
Chamber Size(W*D*H) | 470*449*1178mm | 490*464*1278mm | 560*600*1198mm |
External Size (W*D*H) | 672*892*1825mm | 691*907*1925mm | 764*1032*1860mm |
Packing Size(W*D*H) | 750*960*1960mm | 970*770*2090mm | 1100*850*2010mm |
Gross Weight | 185kg | 195kg | 228kg |
