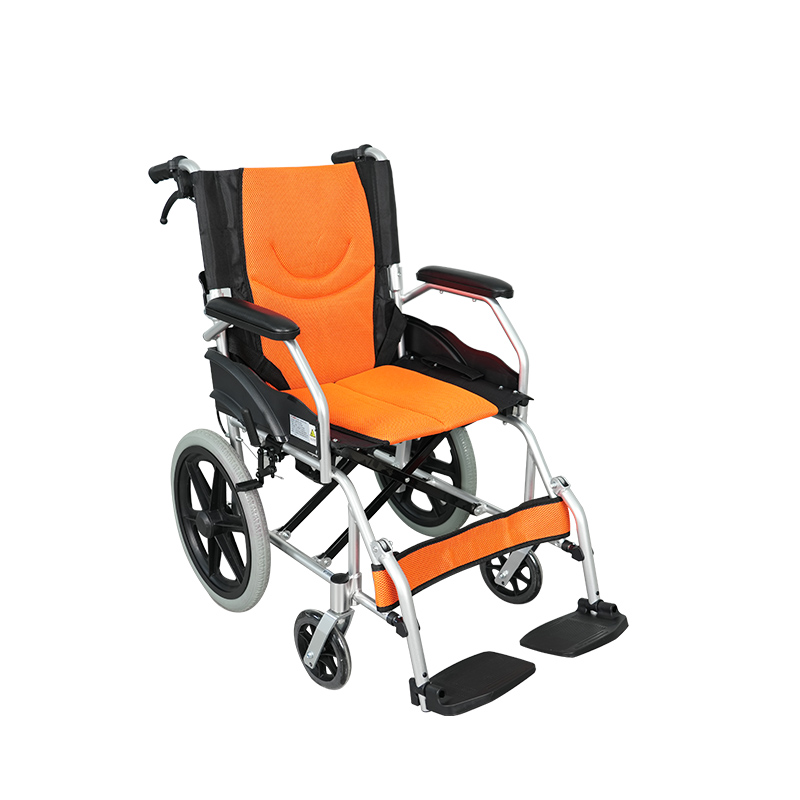

Manual Wheelchair SYIV100-MFL808B Series
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
lntroduction:
Wheelchair is an important mobile tool for home rehabilitation, turnover transportation, medical treatment, and outingactivities for the wounded, sick, and disabled. it not only satisfies the mobility of the physically disabled and people withmobility impairments, but more importantly, it is convenient for family members to move and take care of patients.
Allow patients to use wheelchairs to exercise and participate in social activities.
Download
Features:
1. The tires are non-pneumatic tires with strong shock resistance and cushioning ability.
2. The frame adopts high-strength aluminum alloy structure, which is wear-resistant, corrosion-resistantand light in weight.
3. The seat cushion is made of honeycomb breathable material, which has better moisture absorption and air permeability, making the patient more comfortable.
4. The product can be folded-the backrest can be folded, the seat cushion can be detached, and the foot pedal can be opened and closed, making the operation more light and flexible.
5. Double brake and special seat belt design.
Technical Parameters:
Model | SYIV100-MFL808B-12 | SYIV100-MFL808B-16 | SYIV100-MFL808B-20 | SYIV100-MFL808B |
Rear Wheel Configuration | Integrated Wheel | PU wheel | ||
Instrument Size(W*D*H) | 930*625*920mm | |||
Folded Width | 320mm | |||
Seat Size(W*D*H) | 450*370*445mm | |||
Seat Height | 470mm | |||
Front Wheel Diameter | 6 inches | |||
Rear Wheel Diameter | 12 inches | 16 inches | 20 inches | |
Loading Capacity | 100kg | |||
Package Size(W*D*H) | 770*300*710mm | |||
Net Weight | 12kg | 10.5kg | ||
Gross Weight | 13.5kg | 12kg | ||
