Horizontal Laminar Flow Cabinet BBS-H800
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBS-H800 BBS-H1100 (Previous name: BBS-DDS) BBS-H1300(X) BBS-H1500 (Previous name: BBS-SDS) BBS-H1800(X)
Introduction:
Laminar Flow Cabinet is used only for sample protection. Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
Download
Features:
1. Horizontal laminar flow, single-sided operation.
2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.
3. Equipped with pre-flter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.
4. Work zone is made of SUS304 material, beautiful and corrosion resistance.
5. Footmaster casters design, convenient cabinet movement and fixation.

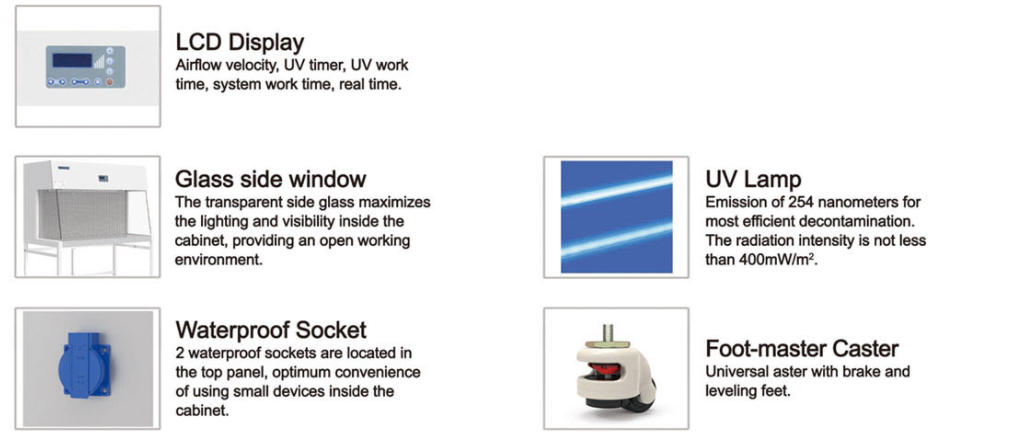

6. LCD screen, real-time display of running status (air velocity, timer, UV lamp time, HEPA filter running time).
7. With ultraviolet lamp, fan appointment timing function.
8. Unit conversion function, which switches units between PA and m/s.
9. The UV lamp is turned on after 5s to protect the safety of the operators.
10. Perfect alarm system:
(1) Ultra-high filter pressure alarm
(2) Filter failure replacement alarm
(3) Low wind speed alarm
11. Interlocking function: UV lamp and fan, fluorescent lamp.
Technical Parameters:
Model | BBS-H800 | BBS-H1100 | BBS-H1300(X) | BBS-H1500 | BBS-H1800(X) |
External Size(W*D*H) | 800*808*1690mm | 1100*808*1690mm | 1300*808*1690mm | 1500*808*1690mm | 1800*808*1890mm |
Internal Size(W*D*H) | 700*500*600mm | 1000*500*600mm | 1200*500*600mm | 1400*500*600mm | 1700*500*800mm |
Work Surface Height | 750mm | ||||
Display | LCD display | ||||
Airflow Velocity | 0.30~0.45m/s | ||||
Material | Working area: 304 stainless steel | ||||
Pre-Filter | Polyester fiber, washable | ||||
HEPA Filter | One, 99.995%efficiency at 0.3μm | ||||
Noise | ≤65dB(A) | ||||
Illumination | ≥300lx | ||||
Vibration | ≤5μm(rms) | ||||
Safety | Colonies Number≤0.5CFU/30min | ||||
Clean Level | ISO level 5(Class 100) | ||||
Waterproof Sockets | Two sockets Max. Power: 500W(For BBS-H800/1300); 1000W(For BBS-H1100/1500/1800(X)) | ||||
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | ||||
Consumption | 750W | 1200W | 800W | 1300W | 1400W |
LED Lamp | 8W*1 | 12W*1 | 12W*1 | 16W*1 | 16W*2 |
UV Lamp | 20W*1 | 20W*1 | 30W*1 | 30W*1 | 20W*2 |
Emission of 253.7 nanometers | |||||
Standard Accessories | LED lamp, UV lamp*2, Base stand, Waterproof socket*2, Hook*10 | ||||
Optional Accessory | Electric height adjustable base stand | ||||
Package Size(W*D*H) | 940*1030*1350mm | 1240*1030*1350mm | 1440*1030*1350mm | 1640*1030*1350mm | 1940*1030*1550mm |
Gross Weight | 133kg | 175kg | 195kg | 216kg | 255kg |
