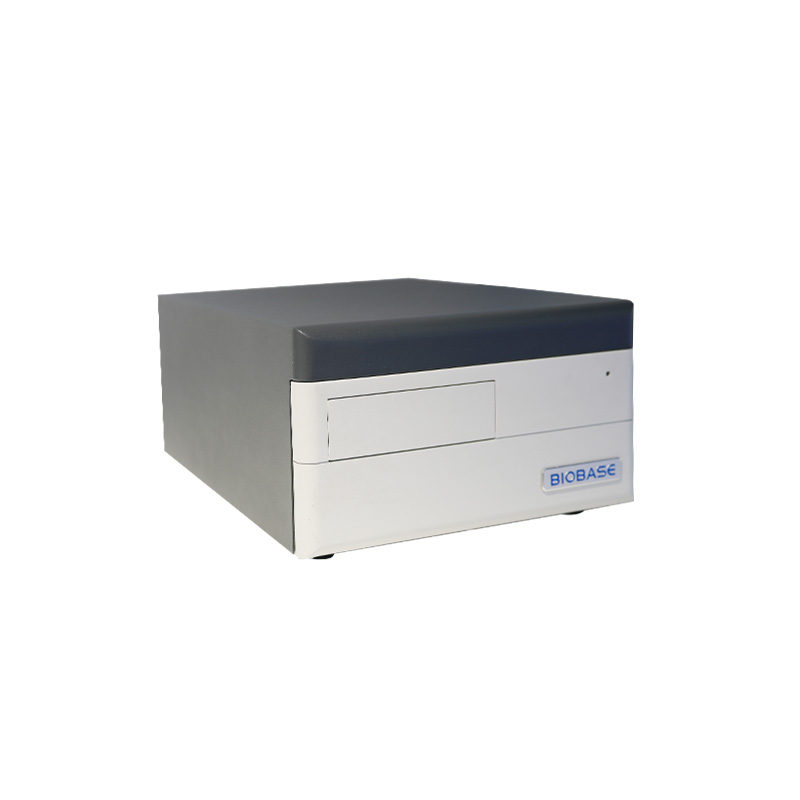

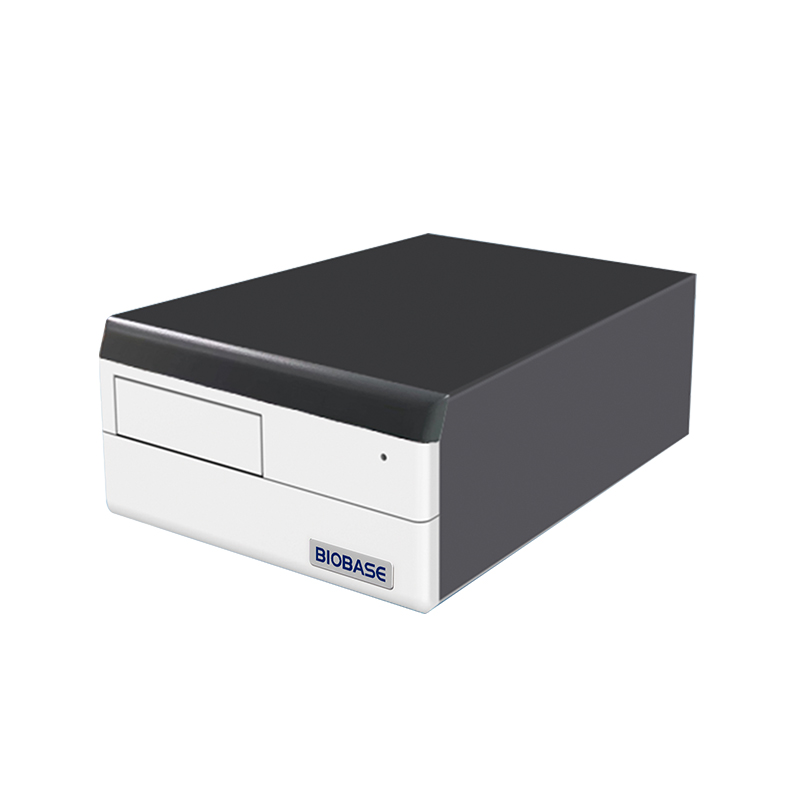

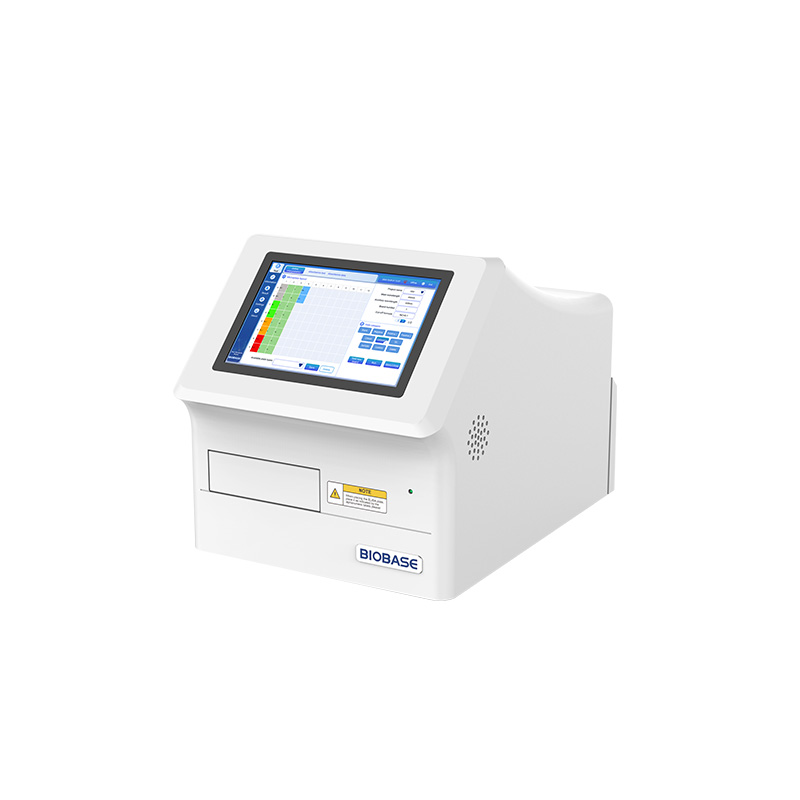

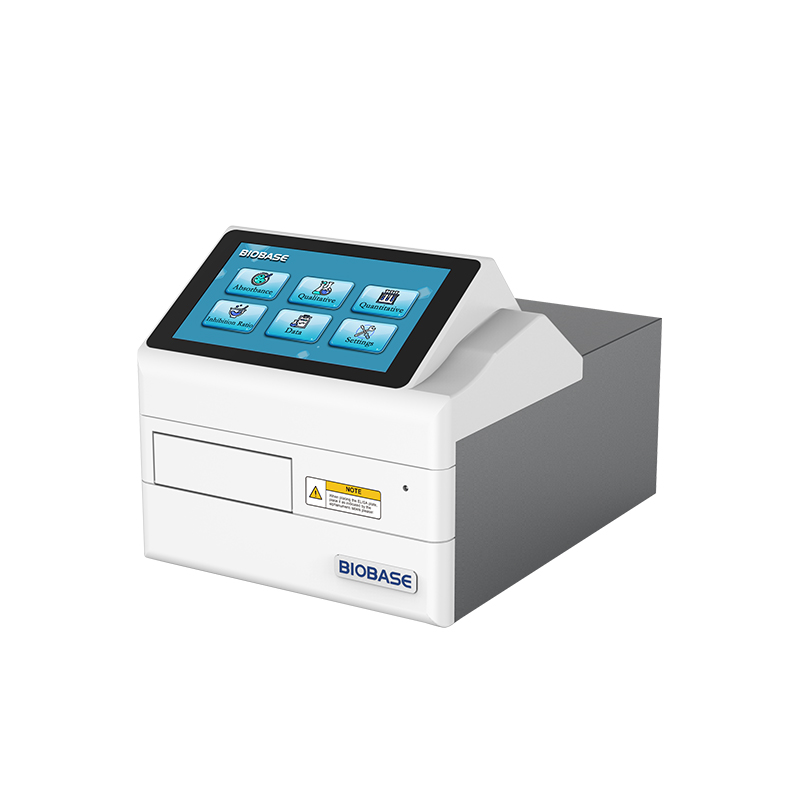

ELISA Microplate Reader BK-EL10A BK-EL10B BK-EL10C BK-EL10D BK-EL10DA
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-EL10A, BK-EL10B, BK-EL10C, BK-EL10D, BK-EL10DA
Introduction:
Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields. It uses enzyme-linked immunosorbent assay(ELISA) and other experimental methods to measure the absorbance and fluorescence intensity of reactants to quantitatively analyze specific components in samples. The main functions of ELISA include but are not limited to the detection of light absorption, fluorescence intensity, chemiluminescence, etc. These functions make ELISA an indispensable tool in the laboratory.
Download
Features:
1. 10.1-inch large touch screen operation(Except BK-EL10B).
2. High precision and accurate results.
3. Software: Single wavelength and double wavelengths detection methods.
4. BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
Technical Parameters:
Model | BK-EL10A | BK-EL10B | BK-EL10C | BK-EL10D | BK-EL10DA |
Measurement Channel | Vertical 8 optical channels | ||||
Plate Type | 96-well microplate | ||||
Wavelength Range | 400~750nm | 340~850nm | |||
Filter | Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm(BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | ||||
Reading Range | 0.000~4.000Abs | 0.000~4.500Abs | |||
Linear Range | 0.000~3.000Abs | 0.000~3.500Abs | |||
Resolution | 0.0001Abs | ||||
Repeatability | CV≤1.0% | ||||
Stability | ≤±0.005Abs | CV≤0.2% | |||
Sensitivity | ≥0.01mg/L | ||||
Channel Difference | ≤0.02Abs | ≤±0.003Abs | |||
Vibration Plate Function | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10D, BK-EL10DA) | ||||
Incubation Function | Time Range: 0~60min Temp. Range: RT+4℃~50℃(Only for BK-EL10D, BK-EL10DA) | ||||
Detection Mode | Single/double wavelength | ||||
Qualitative | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | ||||
Quantitative | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | ||||
Display | 10.1 inch color touch capacitive screen(BK-EL10A, BK-EL10D, BK-EL10DA) 10.1 inch resistive touch screen(BK-EL10C) | ||||
Operating Mode | Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse(BK-EL10A, BK-EL10D, BK-EL10DA) | ||||
Printer(Optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer(A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | ||||
Interface | USE2.0*4, RJ45 network port*1, RS-232*1(BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port(BK-EL10B) RS-232*2(Standard RS232 to USB cable)(BK-EL10C) | ||||
Power Supply | AC100~240V, 50/60Hz | ||||
Instrument Size(W*D*H) | 450*320*300mm | 450*320*190mm | 450*320*300mm | 495*340*370mm | |
Package Size(W*D*H) | 540*400*460mm | 585*425*405mm | 610*440*475mm | ||
Net/Gross Weight | 13/15kg | 10/12kg | 11/13kg | 12/14kg | |
