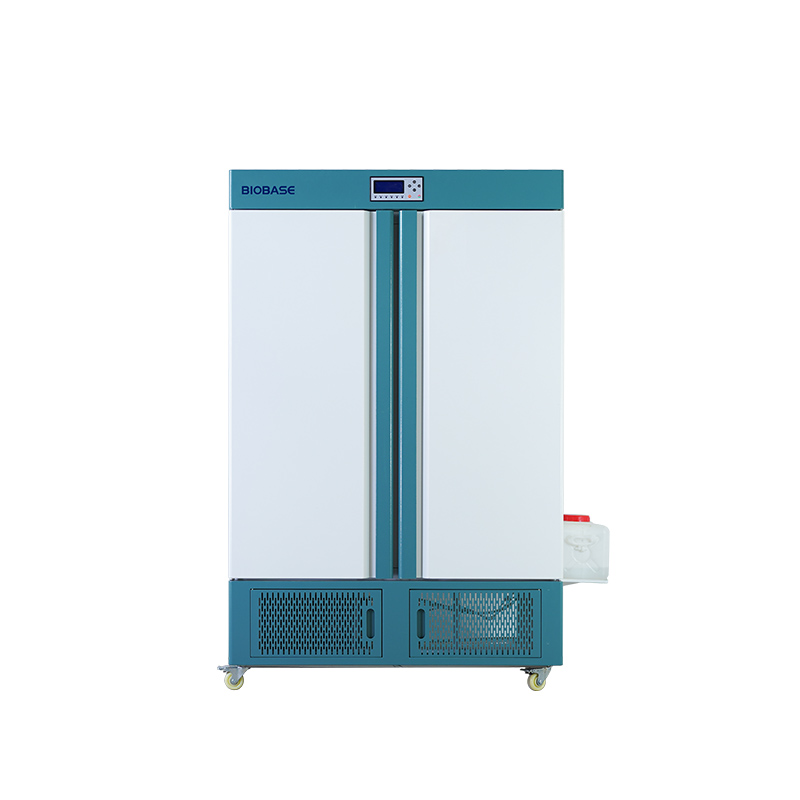

CO₂ Climate Incubator
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Application
It is widely used in plant growth and tissue culture, seed germination, seedling raising, microbial culture tests; as well as special test equipment for other purposes such as lighting, constant temperature, constant humidity, and carbon dioxide control.
Download
Features
Structure: The chamber is made of mirrored stainless steel
Opening design: The equipment is equipped with a non-protruding overall arc door handle sheet metal design
Control system: 9 sets of operating modes are optional, and the control method of cyclic switching during the day and night
Humidification system: Adopts an external ultrasonic humidifier and a duct-type multi-point mist outlet humidification method to avoid the unevenness of a single mist outlet
Protection function: If the equipment is over-temperature or under-temperature or the sensor fails, the controller will alarm in time and display the alarm in text
CO₂ control: Adopts a special far-infrared CO₂ sensor, which has fast response, accurate concentration measurement and stable control
Technical Parameters
Model | BJPX-CA500-B3 BJPX-CA500-C3 BJPX-CA500-D3 | BJPX-CA1000-B3 BJPX-CA1000-C3 BJPX-CA1000-D3 | BJPX-CA1500-B3 BJPX-CA1500-C3 BJPX-CA1500-D3 |
Capacity | 500L | 1000L | 1500L |
Temperature Control Range | 0-50℃(without light); 10-50℃(with light) | ||
Temperature Resolution | 0.1℃ | ||
Temperature Fluctuation | ±1℃ | ||
Humidity Control Range | 50~99%RH(The humidity setting is effective when the temperature is above 10℃) | ||
Humidity Fluctuation | ±3~±7%RH | ||
Illumination | B3 type:0-15000lux; C3 type:0-20000lux; D3 type:0-30000lux | ||
Lighting Method | Top lighting LED light panel (400*400mm), monochromatic light | ||
Light Panel | 3pcs | ||
CO₂ Concentration Control Range | Atmosphere-6000PPM | ||
Ambient Temperature | 10-30℃ | ||
Inner Material | Stainless Steel |
|
|
Outer Material | Cold-rolled sprayed steel plate |
|
|
Timing Range | 0-99h59min/continuous | ||
Power(W) | B3 type:1066; C3 type:1096; D3 type:1141 | B3 type:1842; C3 type:1902; D3 type:1992 | B3 type:3555; C3 type:3645; D3 type:3780 |
Power Supply | 220V 50Hz | ||
Optional Accessories | Printer, USB, UV lamp, timed ventilation function, test hole, inner door | ||
Packing Size | 840*830*2020mm | 1360*870*1930 | 1860*830*2070 |
Gross Weight | 180kg | 265kg | 320kg |
