Class II A2 Biological Safety Cabinet
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model EA2-3F EA2-4F EA2-5F EA2-6F EA2-7F
Introduction:
The EC Series Class II A2 Biological Safety Cabinet is a state-of-the-art containment unit designed to provide maximum protection for personnel, products, and the environment while working with hazardous biological materials.
Download

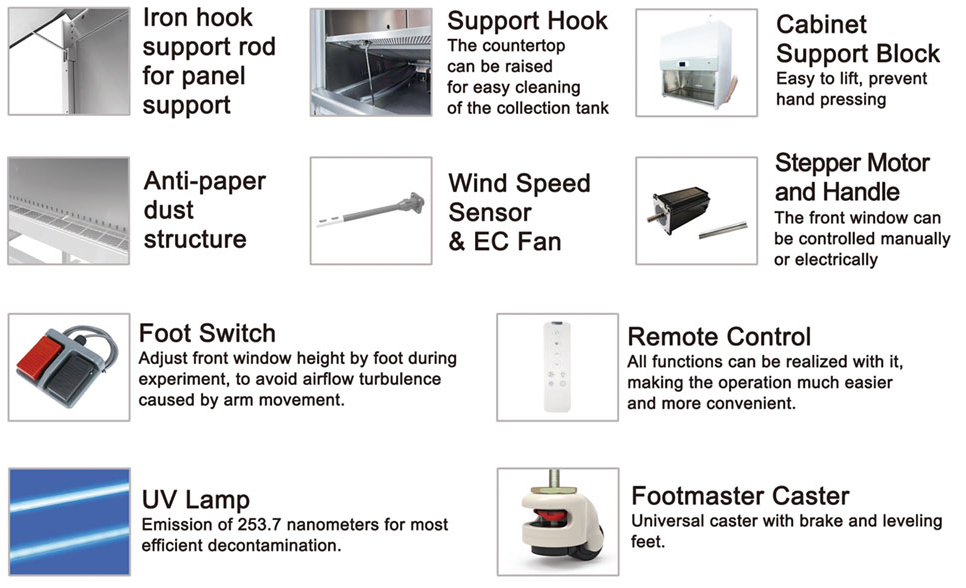

Features:
1. 7-inch touch color display screen: touch operation, real-time more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.
2. The power-on password can be set to prevent unrelated personnel from mis-operation.
3. Automatically adjust the wind speed.
4. With power-off memory function, the state before power-off is restored after power-on, and there is a visual prompt alarms.
5. The integrated design of the operation area makes it easy to disassemble and clean.
6. The working area is equipped with a wind speed sensor to detect the wind speed in real and real time.
7. It can be used manually and electrically, and the front window can be closed by pulling down the glass door when the power is off.
8. The cabinet is separated from the base. The height of the adjustable base can be customized.
9. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.
10. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
11. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
12. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.
13. The front window glass has a one-key lift function
Technical Parameters:
Model | EA2-3F | EA2-4F | EA2-5F | EA2-6F | EA2-7F | |
External Size（W*D*H） | 1100*800*2200mm | 1300*800*2200mm | 1500*800*2200mm | 1800*800*2200mm | 1950*800*2250mm | |
Internal Size（W*D*H） | 940*600*660mm | 1150*600*660mm | 1350*600*660mm | 1625*600*660mm | 1800*600*660mm | |
Tested Opening | Safety height 200mm(8") | |||||
Max Opening | 460mm | |||||
Inflow Velocity | 0.53±0.025m/s | |||||
Downflow Velocity | 0.33±0.025m/s | |||||
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | |||||
Front Window | Manual and electric. Tempered glass≥5mm. Anti UV | |||||
Noise | ≤65dB | |||||
UV Lamp | 30W*1 | 30W*1 | 40W*1 | 40W*1 | 40W*1 | |
UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination | ||||||
LED Lamp | 12W*2 | 14W*2 | 16W*2 | 16W*2 | 12W*4 | |
Illumination | ≥1000Lux | |||||
Consumption | 600W | 800W | 1300W | 1300W | 1700W | |
Waterproof Socket | Two, total load of two sockets: 500W | |||||
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | |||||
Control System | Microprocessor | |||||
Airflow System | 70% air recirculation, 30% air exhaust | |||||
Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, high filter pressure, abnormal power failure | |||||
Material | Work Zone: 304 stainless steel | |||||
Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||||
Work Surface Height | 770mm(can be customized) | 800mm(can be customized) | ||||
Caster | Footmaster caster | |||||
Power Supply | AC220V, 50/60Hz; 110V, 60Hz | |||||
Standard Accessory | LED lamp 2pcs, UV lamp 2pcs, Base stand, Foot switch, Drain valve, Waterproof sockets 2pcs, EC Fan, Remote control | |||||
Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest | |||||
Gross Weight | 284kg | 316kg | 355kg | 420kg | 455kg | |
Package Size（W*D*H） | 1230*1060*1840mm | 1430*1060*1840mm | 1630*1060*1840mm | 1930*1060*1840mm | 2080*1060*1840mm | |
