Class II A2 Biological Safety Cabinet EA2-2F
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model EA2-2F
Introduction:
The Class II A2 Biological Safety Cabinet is a high-performance containment unit designed to ensure the safety of laboratory personnel, the environment, and sensitive biological materials. This cabinet is ideal for use in research laboratories, clinical diagnostics, and other environments where handling infectious agents or hazardous materials requires stringent containment measures.
Download

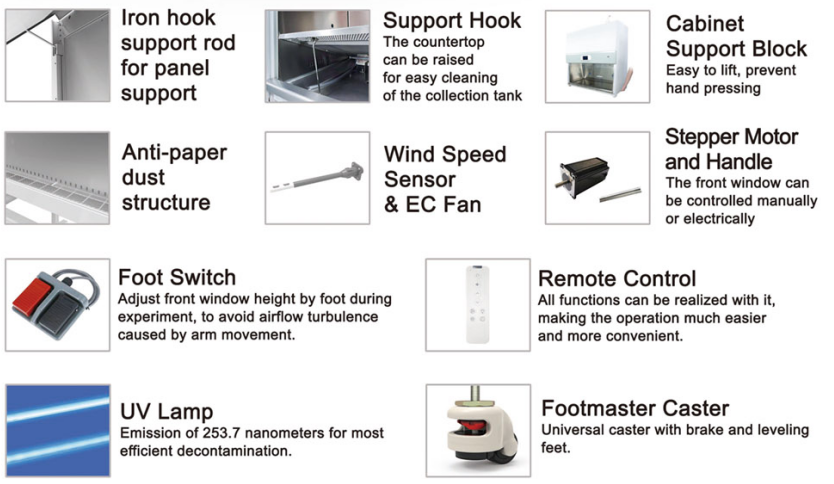

Features:
1.7-inch touch color display screen: touch operation, real-time more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.
2. Power-on password can be set to prevent unrelated personnel from mis-operation.
3. Automatically adjust the wind speed.
4. With power-off memory function, the state before power-off is restored after power-on, and there is a visual prompt alarm.
5. The integrated design of the operation area makes it easy to disassemble and clean.
6. The working area is equipped with a wind speed sensor to detect the wind speed in real and real time.
7. It can be used manually and electrically, and the front window can be closed by pulling down the glass door when the power is off.
8. The cabinet is separated from the base. The height of the adjustable base can be customized.
9. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.
10. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
11. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
12. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.
13. The front window glass has a one-key lift function
Technical Parameters:
Model | EA2-2F |
External Size（W*D*H） | 700*700*2000mm |
Internal Size（W*D*H） | 600*500*540mm |
Tested Opening | Safety height 200mm |
Max Opening | 360mm |
Inflow Velocity | 0.53±0.025m/s |
Downflow Velocity | 0.33±0.025m/s |
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
Front Window | Two-layer laminated toughened glass≥5mm. Anti UV. |
Noise | ≤65dB |
UV Lamp | 15W*1 UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination |
LED Lamp | 8W*2 |
Illumination | ≥1000Lux |
Consumption | ≤500W |
Socket | Two, total consumption: 500W |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
Control System | 70% air recirculation, 30% air exhaust |
Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, High filter pressure, abnormal power failure |
Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
Work Surface Height | 750mm with base stand |
Power Supply | AC220V, 50/60Hz; 110V, 60Hz |
Standard Accessory | Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, Drain ball valve*1, Waterproof Socket*2, EC Fan, Foot switch, Remote control |
Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest |
Package Size（W*D*H） | Carton: 820*910*1500mm |
Gross Weight | 170kg |
