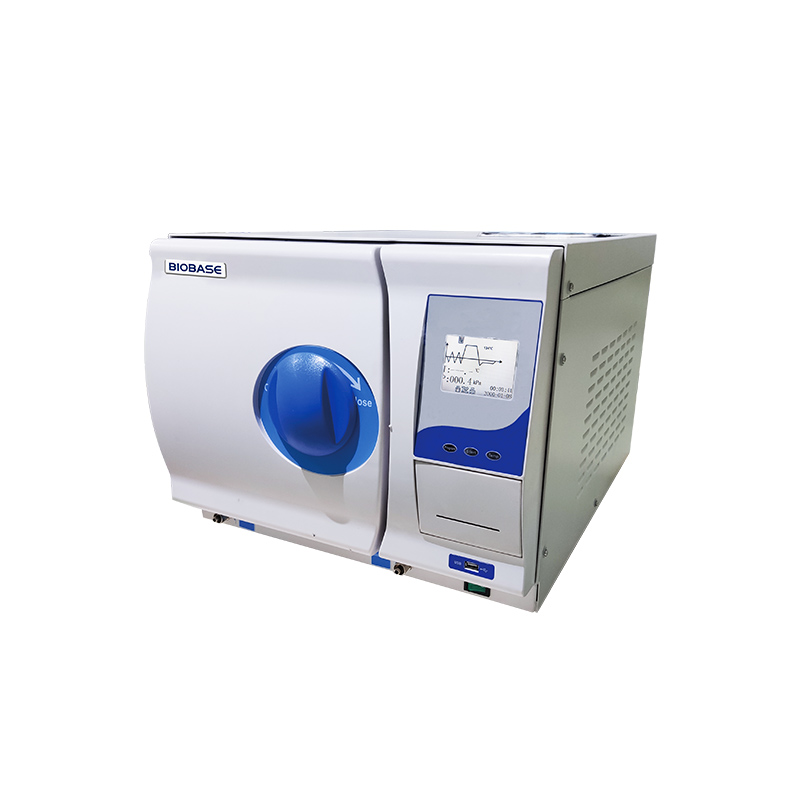

Table Top Autoclave Class B BKMZA BKMZB
  • Table Top Autoclave Class B BKMZA BKMZB
  • Table Top Autoclave Class B BKMZA BKMZB
  • Table Top Autoclave Class B BKMZA BKMZB

Table Top Autoclave Class B BKMZA BKMZB

Brand BIOBASE

Product origin CHINA

Delivery time Within 7 days

Supply capacity Factory Direct Supply

Model BKMZA BKMZB

Introduction:
The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.

Download

Table Top Autoclave Class B BKMZA BKMZB

Features:

1. Build-in open type water tank

The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.

2. High-efficiency ultimate vacuum

The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.

3. Large LCD display for BKMZA/BKMZB

The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.

4. Multiple program types

The system has various programs that include solid instruments, packaged instruments, fabric(dressing) program, and enhance program. The other three are test programs, namely HELIX test, B&D test, and vacuum test.

5. Standard USB port for BKMZA/BKMZB

Users can store the sterilization data with USB disk.

6. Optional mini printer can be attached to record the process of sterilization.

7. High-efficiency air filter: 0.22μm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99. 5%, to ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.

8. Safety protection

Automatic power-off protection for over-temperature and over-pressure, anti-dry burning protection device, automatic pressure relief device for over-pressure, over-current protection device, and leakage protection device.


Technical Parameters:

Model

BKMZA(Previous name: BKM-Z18B)

BKMZB(Previous name: BKM-Z24B)

Capacity

18L

23L

Door

Manual

Display

3.5-inch LCD

Max Designed Pressure

0.28MPa

Working Pressure

0.23Mpa

Max Designed Temp.

150℃

Working Temp.

121/134℃

Temp. Precision

0.1℃

Sterilization Time

0~60min

Drying Time

0~20min

Water Tank Capacity

3.5L

Vacuum System

High efficiency vacuum pump

Chamber Material

S30408

Chamber Size

φ247*360

φ247*470

Power Supply

Standard: AC220V, 50/60Hz

Optional: AC110V, 50/60Hz

Wiring Method: Plug

Consumption

1950VA

Altitude

≤2000m

Could be customized@2000~3000m

Rack

1 rack with 3 trays

Standard Accessories

Aluminum tray, USB port

Optional Accessories

Stainless steel tray, printer

External Size(W*D*H)mm

495*650*410

495*700*410

Package Size(W*D*H)mm

610*810*590

610*810*590

Net Weight(kg)

48

53

Gross Weight(kg)

63

65

The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.
